Hickman Edge Systems

Why We Rep Them

The case for Hickman

Hickman Edge Systems is part of Carlisle Architectural Metals (CAM), and it's CAM's dedicated perimeter edge specialist. TerminEdge fascia and PermaSnap coping are both FM Approved, not just ES-1 tested, with factory-punched 12-foot lengths and snap-on covers that cut field fabrication and install time. The Wind Resistant XL Gutter carries a 160 mph, 30-year warranty — well beyond the 90 mph most edge metal is rated for. Roofer's Edge covers the same fascia and coping categories at a lighter, ES-1-tested value tier when FM Approval isn't required. Manufacturing well over 1,500 miles of edge metal a year, backed by 70+ years as a dedicated specialist.

Product Lines

Systems We Specify

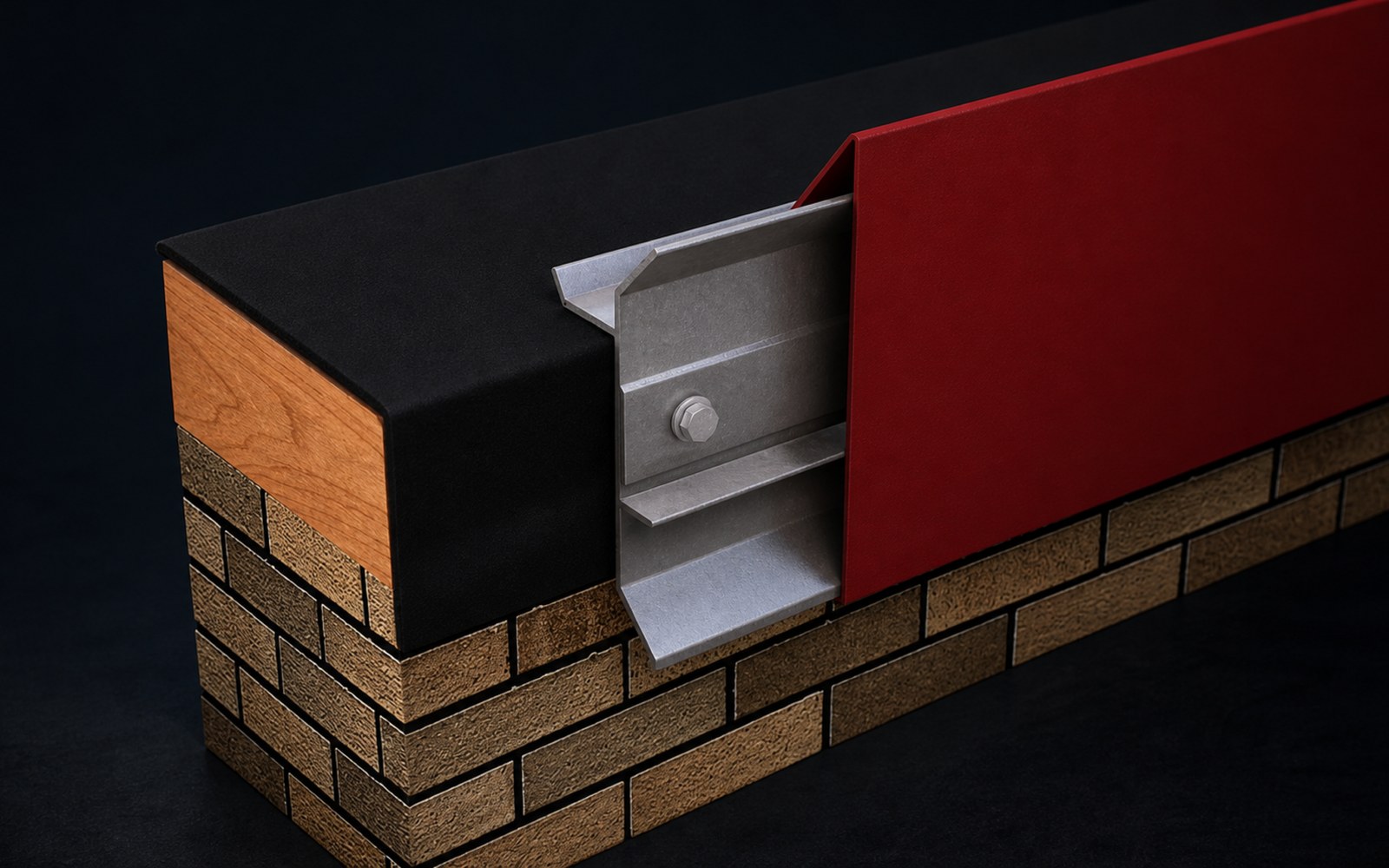

Fascia

The roof's first line of defense, factory-built.

TerminEdge is FM Approved, not just tested — a three-piece snap-on system built from 12-foot factory lengths.

TerminEdge is ANSI/SPRI/FM 4435 ES-1 tested and FM Approved — a step beyond the tested-only rating most edge metal carries. The three-piece snap-on system ships in 12-foot lengths with pre-punched holes, cutting field fabrication and speeding install across five profile options. Roofer's Edge covers the same fascia category at a lighter, ES-1-tested value tier — 90 mph rated with a 10-year warranty — for buildings that don't require FM Approval.

FM Approved

Beyond ES-1 testing alone

12 ft

Factory lengths, pre-punched

5

TerminEdge profile options

3

Piece snap-on system

---

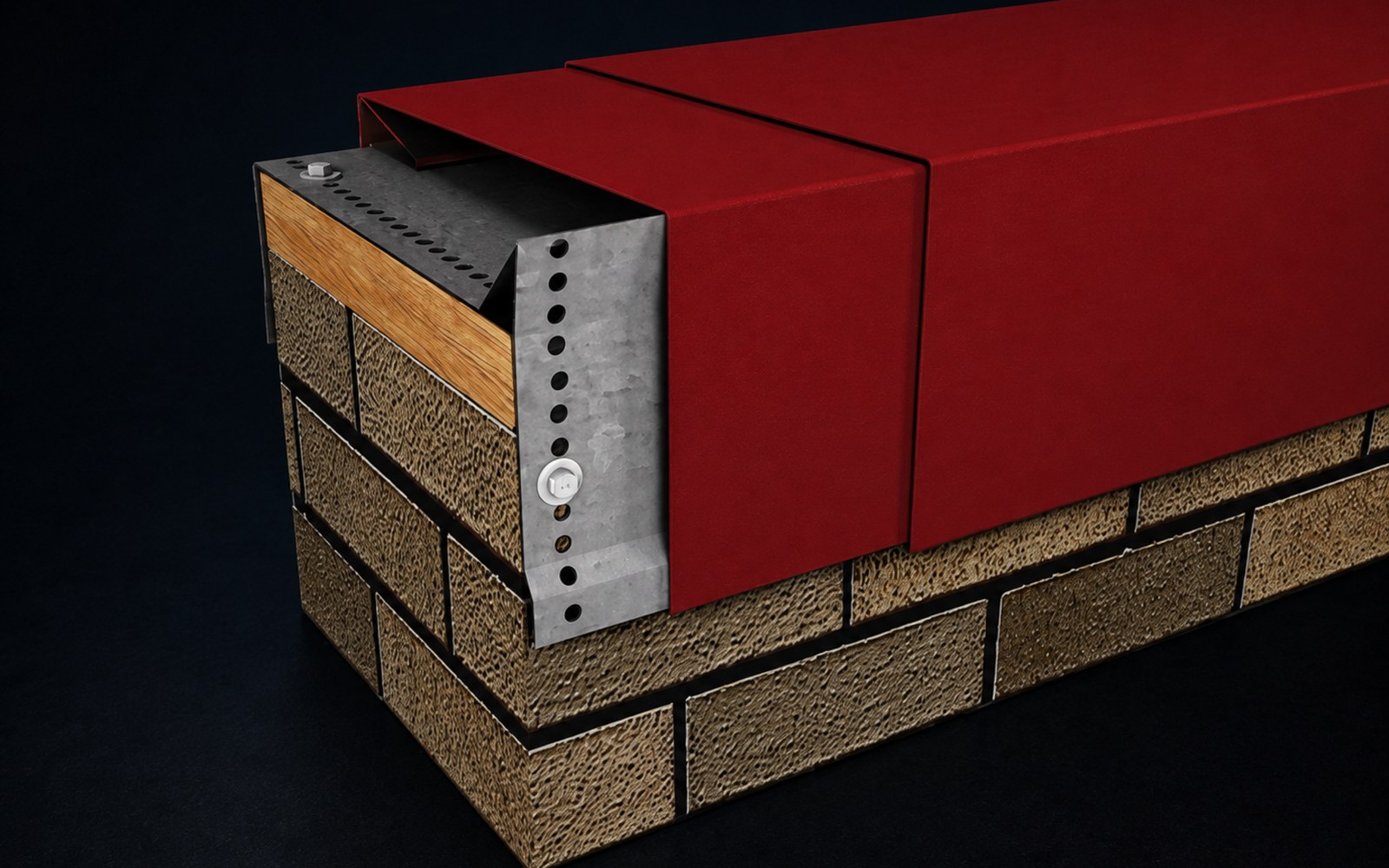

Coping

Built for parapets, not improvised on them.

PermaSnap self-locates on pre-punched clips with a concealed splice and integral gutter — some of the highest wind ratings in the category.

PermaSnap is ES-1 tested for parapet walls up to 32 inches wide, with self-locating pre-punched clips, a concealed splice with integral gutter system, and a snap-on cap — Hickman markets it as carrying some of the highest wind performance ratings in the industry. Four tiers (Premier Plus, Premier, Plus, and standard) match the coverage to the wind exposure. Roofer's Edge Coping is the lighter, ES-1-tested option when FM Approval isn't required.

32"

Max parapet wall width

4

PermaSnap tiers

1

Concealed splice & integral gutter

FM Approved

Beyond ES-1 testing alone

---

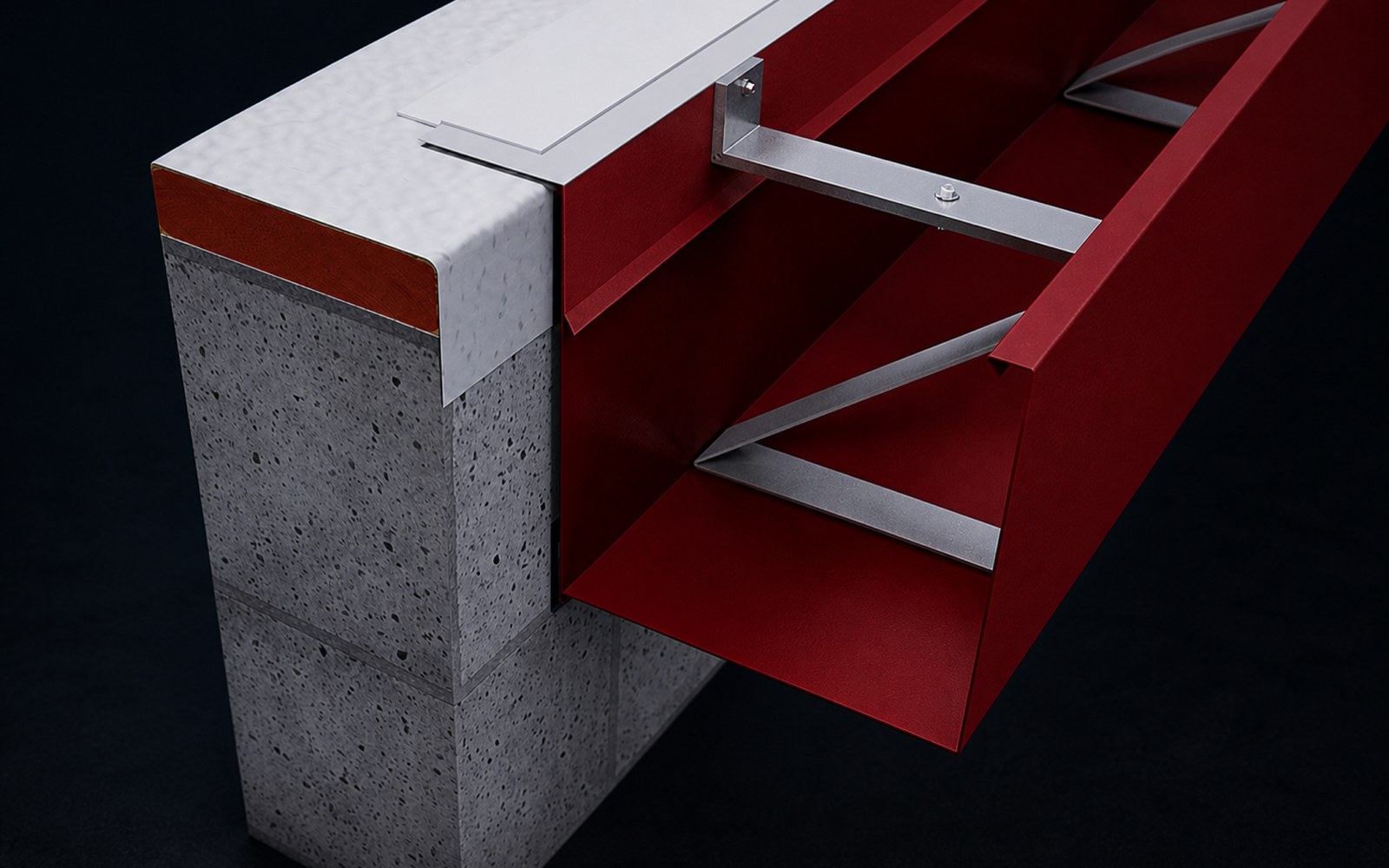

Water Control

160 mph, when 90 is the industry standard.

The Wind Resistant XL Gutter pre-assembles on the roof, with no external brackets or wind straps to fail.

The Wind Resistant XL Gutter carries a 160 mph, 30-year wind warranty — nearly double the wind rating most edge metal systems, including Hickman's own ES-1 fascia and coping lines, are tested to. Larger sizing means fewer downspouts, and it pre-assembles on the roof with no external brackets or wind straps to fail later. No post-paint means faster lead times too.

160 MPH

Wind warranty rating

30 yrs

Warranty term

0

External brackets or wind straps

1

Pre-assembled on roof

Let's get your Hickman system right.

RRI is your Hickman Edge Systems rep for Southern California — spec review, submittals, and warranty support from one team, start to finish.

Resources

Technical Documents

Need data sheets, specifications, installation details, or warranty information for Hickman Edge Systems? Tell us the product and application and we'll send the current documents straight from the manufacturer.
